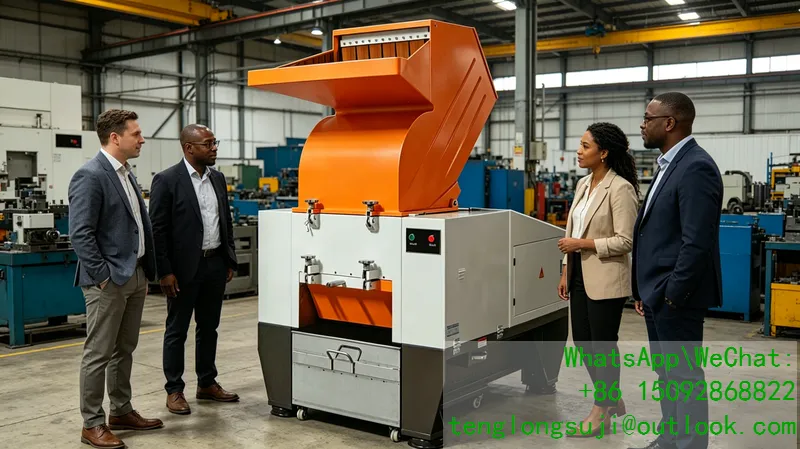

TL700 Series Super-large Heavy-duty Crusher 55–160kW Top-tier Industrial Plastic Crushing Host

Independently developed exclusively for mega plastic recycling industrial parks with an annual output of over 10,000 tons and large integrated plastic recycling production lines, the Tenlong TL700 series is positioned as the flagship Powerful crusher of the full TL product line. It covers a full range of high power from 55kW up to the industry-top 160kW. Equipped with a standard 700mm super-diameter heavy-duty main shaft and an extended & widened integrated crushing cavity, all models come with a factory-standard closed-loop water cooling system, supporting 7×24-hour non-stop full-load mass production. Specially designed for crushing super-large thick and hard plastic materials and whole barrels/shells, it serves as the core water-cooled industrial plastic crushing host for large-scale recycling assembly lines.

1. Gradient High-power Models, Complete Parameter Grading for Adaptive Capacity

The full series is equipped with customized heavy-duty main shafts and adopts a low-speed high-torque impact crushing design. Super-large solid plastic materials require no manual pre-cutting and can be directly fed as a whole. The complete parameters of the four main models with clear capacity grading and intuitive selection are as follows:

2. Dual-blade SKD11 Heavy-duty Cutter Group, Full Adaptability for Soft & Hard Plastics

All Powerful crusherTL700 series Powerful crusherTL700 series  are factory-fitted with imported quenched SKD11 alloy steel blades, featuring high temperature resistance, impact resistance and crack resistance, suitable for long-term full-load cutting operation. Two optional rotor structures adapt to all types of industrial plastic materials:

1. P-type Flat Blade Model (suffix P): Multi-layer parallel flat blades perform staggered fine shearing with gentle cutting action, delivering uniform and regular particle output and extremely low fine dust content. Mainly used for crushing soft rubber, packaging films and large thin-walled plastic shells. The blade gap is telescopically and precisely adjustable, and blades can be polished and reused multiple times after passivation, greatly reducing the replacement cost of high-end heavy-duty cutter groups.
2. Heavy-duty Claw Blade Standard Model: Integrated thickened claw blade impact crushing structure with strong penetration capacity. Specially designed for solid thick plastic blocks, automobile plastic frameworks with steel parts, ultra-thick ABS home appliance shells and thickened HDPE chemical barrels. Super-large materials require no secondary pre-cutting and can be directly fed and crushed, with far higher efficiency than conventional blade types.

The cutter group is gradient-upgraded with balanced load matching different models. The top-configured TL70200 is equipped with 3×34 rotary blades + 2×6 fixed blades. The super-large shearing contact surface evenly distributes cutting load, ensuring non-stop full-load operation all year round without blade cracking, deformation or breakage, perfectly adapting to high-intensity mass production conditions.

3. Full-series Standard Water Cooling Constant Temperature System, Stable Production All Day Long

All four models of the Powerful crusher TL700  are equipped with independent high-power closed cooling water circulation systems. The full-range water flow wraps the crushing cavity and spindle base for bidirectional heat exchange, quickly dissipating massive heat generated by high-power cutting. Even in high-temperature closed workshops in summer with 24/7 continuous operation, it completely solves core pain points including plastic high-temperature softening, melting and blade sticking, and cavity blockage. It reduces 80% of manual downtime for cavity cleaning, stabilizes discharging quality and constant capacity output, and ensures non-stop operation of automated assembly lines.

4. Optional Automatic Supporting Components, Adaptable to Full Closed-loop Unmanned Production Lines

The Powerful crusher can be equipped with four customized upgraded accessories according to factory automation standards and environmental supervision requirements to adapt to high-end integrated recycling lines:

✅ Feeding Magnetic Iron Removal Device: Strongly adsorbs screws, iron scraps and metal impurities to fully protect high-value SKD11 heavy-duty cutters and prevent blade damage from hard object impact;

✅ Negative Pressure Dust Separation & Recovery System: Collects all fine plastic powder to reduce workshop dust pollution. All fine powder can be reused for granulation, improving the comprehensive raw material recovery rate;

✅ Full Material Acoustic & Light Alarm Device: Automatically triggers sound and light alarm when the silo is full to prevent material backflow and cavity blockage and shaft jamming failures;

✅ Integrated Discharging Conveying Equipment: Connects with heavy-duty belt elevators and friction cleaning machines to realize full-process automatic closed-loop conveying from crushing, cleaning, rinsing to granulation, reducing manual attendance.

5. Heavy-duty Body + Full-range Safety Electric Control, Long-term Compliant Operation
6. Heavy-duty Noise Reduction Body: The whole machine is integrally welded with thickened manganese steel plates, weighing 6.5–11.5 tons. Equipped with heavy-duty adjustable shock-absorbing feet, it produces minimal vibration during low-speed heavy-load operation. Multi-layer damping sound insulation partitions inside the body ensure workshop operating noise fully meets environmental emission standards.
7. High-purity Discharging Structure: Reinforced heavy-duty bearings + double-layer high-pressure sealing oil seals completely isolate lubricating oil leakage to avoid raw material pollution. The crushed materials are clean and oil-free, ensuring no black spots or defects in finished granulated products.
8. Triple Safety Electric Control: Standard equipped with motor overload power-off protection, cover opening maintenance power interlock and exclusive blade cleaning safety lock. Adopts international first-class electrical components such as Schneider for stable electric control under high-power working conditions with extremely low failure rate in high-frequency mass production, passing first-level factory safety supervision audit.



9. Core Applicable Production Scenarios

Suitable for mega plastic recycling industrial parks with an annual output of over 20,000 tons, centralized automobile plastic recycling bases, large-scale HDPE hollow chemical barrel crushing and granulation factories, and integrated recycling projects for batch scrapped large home appliance shells. A single unit can serve as the main crushing host; multiple units connected in parallel can build super-large integrated plastic recycling assembly lines with an annual output of hundreds of thousands of tons.
