TL single-shaft shredder dedicated to pipes | Coarse Crushing Equipment for Large-diameter PE & Thick-wall PVC Plastic Pipes
The Tenglong single-shaft shredder dedicated to pipes is a professional coarse crushing host equipment in the TL series specially designed for pipe waste. It adopts a low-speed and high-torque single-shaft shearing structure customized for ultra-long and large-diameter circular plastic pipes, suitable for shredding all types of plastic pipes within Φ1300mm. Equipped with exclusive hydraulic oscillating feeding system and Siemens PLC intelligent anti-blocking system, the coarse shredded materials can be directly connected to the downstream high-power fine crusher to complete the two-stage closed-loop granulation process of shredding and fine crushing. The power range covers full gear models from 37kW to 90kW. It is the standard pre-shredding equipment for plastic pipe extrusion factories, waste pipe recycling and granulation lines, and municipal pipe disposal centers.
- Complete Parameters of Five Gear Models, Matching Pipe Diameter and Production Conditions
The full range of single-shaft shredders dedicated to pipes adopts quenched and tempered solid main shafts and DC53 four-edge V-shaped cutter sets. Small models support manual screen replacement, while medium and large models are standard with automatic hydraulic screen replacement and independent air-cooled hydraulic stations. Different models are matched according to cavity length and rotor diameter to adapt to pipes of different diameters. The detailed model parameters are as follows:
| Model | Rotor Diameter | Installed Power | Shredding Cavity Length | Screen Replacement Mode | Max. Adaptable Pipe Diameter | Machine Weight | Applicable Scenarios |
| TL3280 | 320mm Quenched & Tempered Rotor | 37kW | 800mm Short Cavity | Manual Bolt Screen Removal | Φ300mm Thin-wall Pipe | 4.6t Compact Body | Scrap recycling for small pipe factories |
| TL4080 | 410mm Heavy-duty Rotor | 45kW | 800mm Standard Cavity | One-click Hydraulic Automatic Screen Replacement | Φ630mm Water Supply & Drainage Pipe | 6.8t Standard Body | Mainstream model for small and medium pipe recycling |
| TL40100 | 410mm Heavy-duty Rotor | 55kW | 1000mm Extended Cavity | One-click Hydraulic Automatic Screen Replacement | Φ800mm Medium Large-diameter Pipe | 7.9t Extended Body | Medium-sized pipe recycling & granulation plants |
| TL40120 | 410mm Reinforced Rotor | 75kW Large-diameter Power | 1200mm Ultra-long Cavity | One-click Hydraulic Automatic Screen Replacement | Φ1000mm Thick-wall Winding Pipe | 9.6t Heavy-duty Body | Large-scale large-diameter pipe recycling plants |
| TL40150 Flagship | 410mm Reinforced Solid Rotor | 90kW Ultra-high Power | 1500mm Ultra-wide Cavity | One-click Hydraulic Automatic Screen Replacement | Φ1300mm Giant Municipal Pipe | 12.5t Flagship Body | 10,000-ton pipe recycling industrial parks |
- Core Exclusive Structure: Hydraulic Oscillating Feeding + DC53 Wear-resistant Cutter Set
2.1 Dual-speed Hydraulic Oscillating Feeding System
Different from ordinary flat feeding plates, the single-shaft shredder dedicated to pipes is equipped with an arc oscillating feeding plate that fits the outer contour of circular pipes perfectly. It avoids slipping, rolling and hollow suspension during feeding of corrugated pipes, winding pipes and solid-wall round pipes, fundamentally solving the problem of feeding jamming. Matched with a dual-speed adjustable hydraulic station with free gear switching: low-speed high-torque mode for stable shredding and anti-blocking of thick hard pipes; high-speed feeding mode for capacity improvement of ultra-long thin-wall pipes. The hydraulic station is equipped with independent air cooling to support 24-hour non-stop production in high-temperature seasons, with constant oil temperature and stable hydraulic thrust for year-round continuous operation.
2.2 DC53 Four-edge Reversible V-shaped Wear-resistant Cutter Set
The machine adopts staggered V-shaped moving cutters made of DC53 special die steel through integrated quenching and tempering heat treatment, with excellent hardness and toughness to resist impact from thick-wall pipes. The four edges of the cutter are reversible for cutting; after single-edge wear, rotating the cutter by 90° restores a brand-new cutting edge, increasing the overall service life by 4 times. The external adjustable knob can modify the gap between moving and fixed cutters: reduce the gap for thick-wall pipes to enhance shearing force, and enlarge the gap for thin-wall pipes to reduce blade wear. For waste underground pipes mixed with sediment, hard wear-resistant overlay welding can be customized on the cutter surface to greatly reduce blade chipping and abrasion risks.
2.3 Graded Adaptive Safety Screen System
Single-shaft shredders dedicated to pipes adopt differentiated graded screen configurations: entry-level small models use manual bolt disassembly screens to save procurement costs; all medium and large models above 45kW are standard with one-click hydraulic quick screen replacement for time and labor saving. Screen hole sizes are customizable: standard holes match the feeding requirements of downstream fine crushers, while large holes for coarse crushing and small holes for fine crushing are optional. The screen door is equipped with a safety limit interlock switch, which cuts off power automatically during maintenance to fully protect operator safety.
- Heavy-duty Transmission Framework + Siemens PLC Intelligent Electric Control
3.1 High-torque Heavy-duty Transmission System
The single-shaft shredder dedicated to pipes is equipped with a low-speed high-module hard-tooth gear reducer, capable of withstanding instantaneous high-intensity impact loads from thick-wall pipes without gear chipping or breaking. The main shaft adopts integral quenched and tempered solid forging technology, maintaining no distortion or bending during long-term shredding of high-hardness thick-wall pipes. The body is an integrated thickened manganese steel welded frame with bottom shock-absorbing pads, ensuring minimal vibration under full-load operation and ultra-high operational stability.
3.2 Siemens PLC Safety Electric Control System
Equipped with an independent integrated Siemens PLC control cabinet and original Schneider electrical components, adapting to long-term operation in dusty and humid pipe workshop environments. It supports free switching between manual jog maintenance and automatic continuous shredding modes. The built-in intelligent load monitoring logic enables automatic reverse blocking removal when pipes are jammed, and automatic acousto-optic alarm and shutdown if dredging fails repeatedly. It features triple protection including dual motor overload power-off, hopper limit and screen door interlock, with CE industrial safety certification, easily passing safety production audits of pipe and recycling plants.
- Complete Pipeline Docking Solution for Production Lines

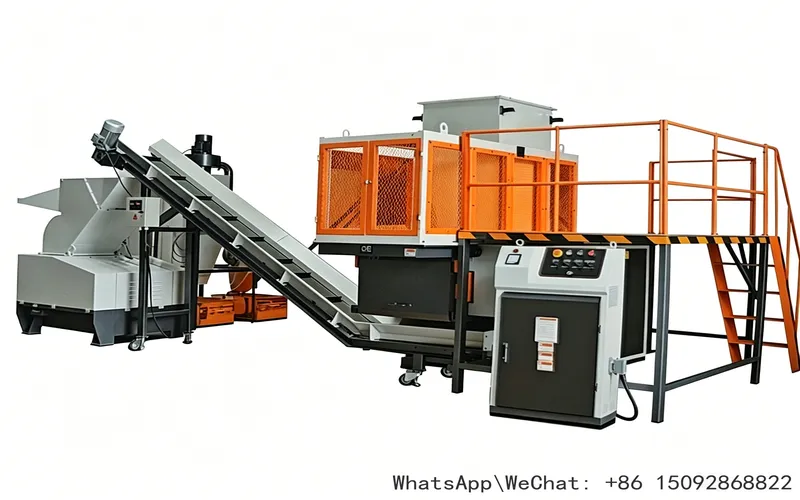

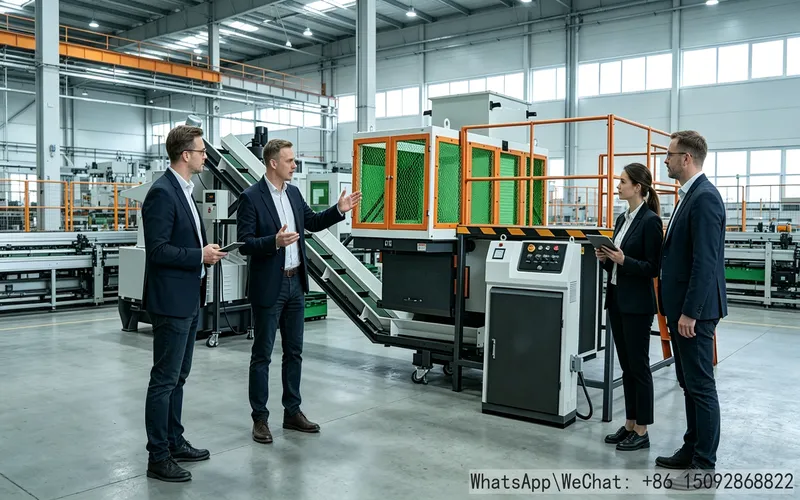

The feeding end of the single-shaft shredder dedicated to pipes can be matched with an inclined belt conveyor to automatically transport 6-meter integral long pipes, eliminating manual sectional handling. The discharge belt is directly connected with QE series high-power fine crushers to build a two-stage closed-loop automatic granulation process of “shredding – fine crushing”. For high-risk mixed materials, spray dust removal units and pipeline metal detectors can be installed to remove embedded steel wires and metal impurities in advance, avoiding cutter damage caused by hard object impact and extending tool service life.
- Applicable Recycled Materials & Target Customers
PE Pipe Types: Municipal water supply pipes, gas transmission pipes, HDPE solid-wall pipes, double-wall corrugated pipes, steel belt winding pipes, greenhouse irrigation pipes
PP/ABS Pipe Types: Chemical anti-corrosion drainage pipes, modified engineering thick-wall pipes, large extrusion head scraps, pipe fitting edge scraps
UPVC Pipe Types: Electrical threading pipes, municipal PVC drainage pipes, plastic steel profile pipe scraps
Target Customers: Plastic pipe extrusion factories, waste pipe recycling & granulation plants, municipal waste pipe disposal centers, engineering plastic profile processing factories
