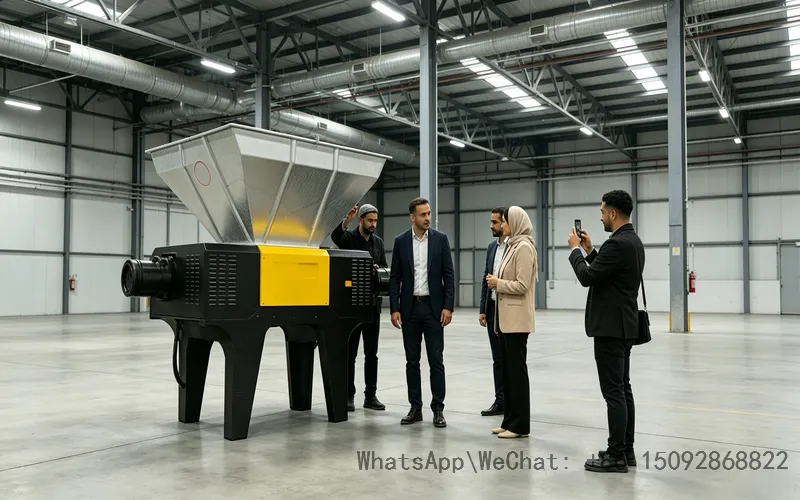

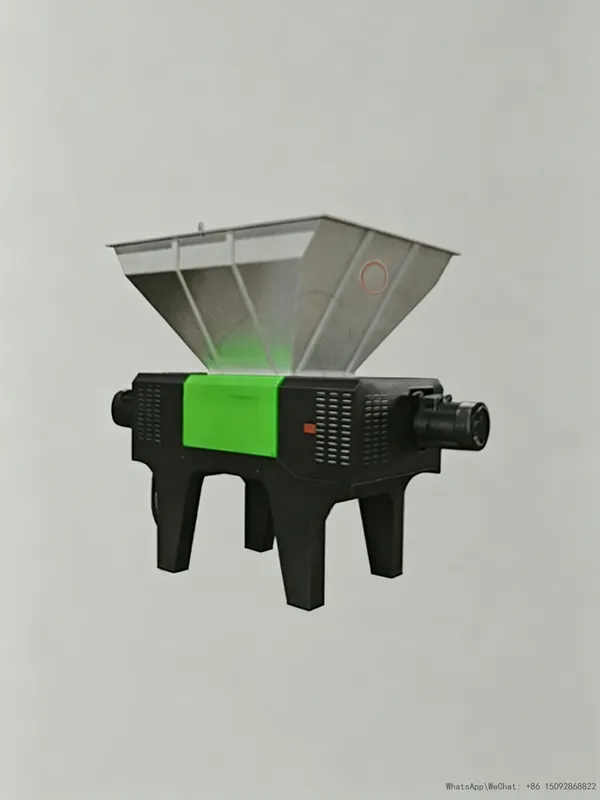

TL Double Shredder – Small, Medium, Large Multi-spec Industrial Shredding Equipment for Tires, Metal, Wood and Solid Waste

Tenlong TL double shredder belongs to the broad-spectrum heavy-duty dual-shaft shear shredding product line of the TL series. It is divided into three capacity tiers: small, medium and large. Adopting a dedicated low-speed high-torque opposing shaft tearing structure, the machine powerfully shreds high-hardness mixed solid waste such as waste tires, mixed metals, thick-walled plastics, solid wood, industrial hazardous waste and domestic garbage. The full series is standard-equipped with PLC intelligent reverse anti-jamming system and split easy-maintenance bearing seats. Optional hydraulic vertical pressing and rotary screening modules deliver extreme working condition adaptability, fully covering all shredding scenarios including auto repair workshops, medium-sized recycling stations and 10,000-ton solid waste industrial parks.

1. Complete Parameters of Three-tier Models, Precisely Matching Capacity and Working Conditions

All TL double shredder models adopt dual-shaft opposing tearing structure, hard-tooth synchronous reducers and dust-proof split bearing seats. Developed hierarchically by rotor diameter, blade thickness and installed power, the equipment adapts to daily processing capacity of 2–50 tons. Detailed parameters are as follows:

2. Core Wear-resistant Structure of Dual-shaft Opposite Shredding for Mixed Hard Materials

Hierarchically Customized Thick Alloy Steel Blade Discs

Blade thickness ranges from 20–100mm for targeted material adaptation. Thin blades boost efficiency for thin films and small plastics, while super-thick integrated blades resist impact and edge chipping for waste tires, thick metals and vehicle components. Forged from high-strength wear-resistant alloy steel, blades can be repaired via overlay welding after wear, greatly reducing replacement costs. Dual-shaft reverse staggered biting tearing effectively prevents winding and jamming of wires, woven bags and long plastics, lowering winding shutdown failure rate by over 70% compared with single-shaft shredders.

Split Split-open Bearing Housing, No Lifting Required for Easy Maintenance

All double shredder models adopt upper and lower split-open bearing seats. Bearings can be disassembled and maintained on-site without integral rotor lifting, cutting maintenance time by 60%. Adjustable multi-stage dust-proof seals at shaft ends prevent dust, sewage and slurry from penetrating bearing cavities. Heavy spherical self-aligning bearings offset deformation from high-intensity tearing impact, doubling the overall overhaul cycle and supporting 24/7 non-stop production.

Hard-tooth Synchronous Heavy-duty Transmission System

Dual independent synchronous reducers with large-module hard-tooth helical gears withstand instantaneous peak impact from tire and metal shredding. Bottom shock-absorbing cushions reduce full-load vibration and frame/motor stress, ensuring zero transmission deviation and zero gear breakage during long-term continuous heavy-duty operation.

3. Optional Value-added Configurations for Custom Automatic Production Line Upgrade

Hydraulic Vertical Pressing Device

Optional vertical hydraulic pressing plate eliminates bridging and empty feeding of fluffy paper rolls, woven bags and loose rubber scraps. Forced vertical feeding increases overall capacity by 20%–40%. PLC-adjustable pressing force and descending speed adapt to both hard and soft materials.

External Rotary Screening System

Matching rotary drum screen with 10–100mm customizable mesh unifies discharge particle size, stabilizing feeding quality for downstream magnetic separation, air separation, plastic granulation and tire pyrolysis processes.

Full Production Line Expansion

Seamlessly connects with closed belt conveyors and storage hoppers for automatic feeding; links directly to magnetic separators, balers and pyrolysis feeders. Optional closed dust covers, spray explosion-proof shields and pulse dust removal units meet environmental and explosion-proof standards for hazardous waste and tire pyrolysis industries.

4. PLC Intelligent Safety Electronic Control System

Integrated independent PLC control cabinet with Schneider electrical components adapts to high-dust and humid solid waste workshop conditions. Supports one-click switching between manual jog maintenance and fully automatic continuous production. Intelligent load protection realizes automatic reverse anti-jamming, acoustic-visual alarm for persistent blockage and no-load sleep power saving. Four safety protections including access door power-off limit, hopper interlock cut-off, dual motor overload protection and external emergency stop ensure CE certification and compliance with hazardous waste and vehicle dismantling safety standards.

5. Wide Material Adaptability & Application Scenarios

Plastic & Rubber: Truck/car/giant engineering tires, hollow chemical barrels, defective injection parts, wrapping films, rubber scraps

Metal: Iron sheets, aluminum castings, copper-aluminum cables, waste car bodies, stamping scraps

Agricultural & Forest Waste: Wood pallets, raw logs, industrial cardboard, paper mill residues, garden branches

Hazardous & Municipal Waste: Mixed domestic garbage, compliant medical waste, waste circuit boards, scrapped home appliances, textile scraps

Applicable Clients: Tire & auto repair recycling stations, medium & small renewable resource stations, home appliance & vehicle dismantling bases, tire pyrolysis industrial parks, large environmental solid waste disposal centers
