Fully Automatic 210 Type Drip Irrigation Belt Three-step Machine, Waste PE Drip Irrigation Belt Special Granulation Recycling Production Line

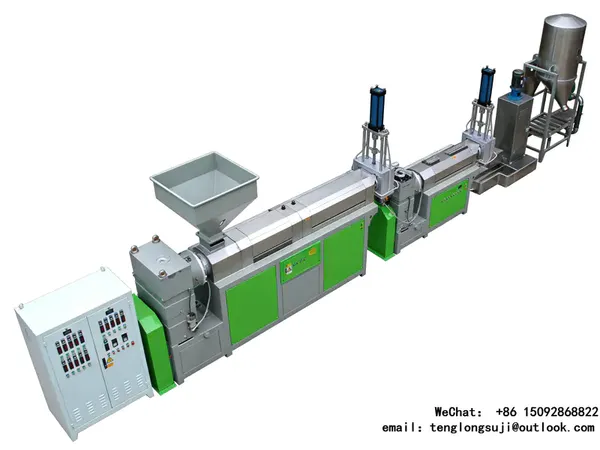

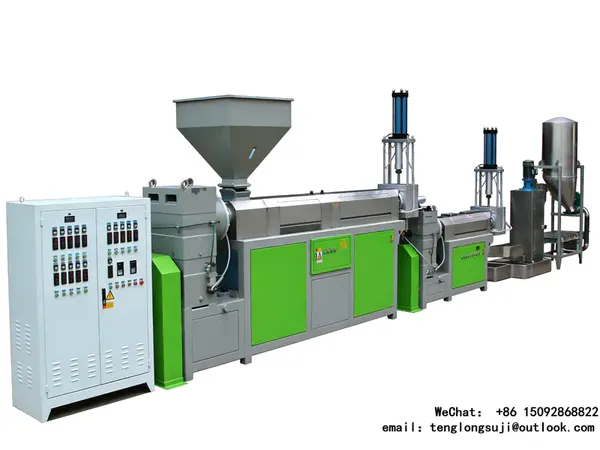

The 210 type drip irrigation belt three-step machine is a three-stage graded plasticizing and granulation equipment specially developed for waste farmland drip irrigation belts, micro-spray belts and PE hoses. Adopting a three-series extrusion process of main machine, secondary machine and tertiary machine, the complete machine is integrated with non-stop hydraulic screen changing, constant-temperature electromagnetic heating, high-speed friction cleaning, vibration screening and dehydration storage configurations. It specifically solves the industry pain points of drip irrigation belts, such as thin and fragile texture, high sediment content, numerous aging impurities, uneven plasticization and frequent strip breakage of ordinary granulators, serving as the core special equipment for large-scale regeneration of agricultural plastic waste.

Traditional single-step and two-step granulation equipment generally suffers from incomplete plasticization, unclean impurity filtration, high-temperature carbonization and unstable discharging when processing drip irrigation belt materials. The produced particles have poor appearance and low purity and cannot be reused in the secondary production of agricultural pipes. In contrast, the 210 type drip irrigation belt three-step machine realizes progressive melting, exhaust, filtration and fine plasticization through three-stage graded plasticization. Equipped with high-frequency heat-treated screws and an intelligent constant temperature system, it perfectly adapts to the material characteristics of PE drip irrigation belts including low density, high impurity and easy aging. It supports stable mass production, producing dense and transparent recycled particles with extremely low impurity content, fully meeting the production standards of high-end recycled particles.

1. Complete Equipment Details, Parameters and Core Value of Accessories
2. 210 Type Main Machine (Primary Pre-plasticization Unit): Equipped with a 330 hard tooth surface reducer with large transmission torque, wear resistance, durability and low operating noise. It features a 210mm inner screw diameter, 273mm outer screw diameter and 3.2-meter total length. The screw is made of 40Cr material with high-frequency quenching heat treatment, featuring high hardness, high temperature resistance, wear resistance and deformation resistance. It never jams or wears out even during long-term processing of sediment-laden dirty materials. Supported by a large channel steel bracket, the fuselage is stable and anti-vibration without shaking or deviation under heavy load operation. Core function: Complete preliminary melting, extrusion and exhaust of waste drip irrigation belts, break up fluffy aging materials, filter large particle impurities initially, reduce the burden of secondary and tertiary fine plasticization at the rear end, and ensure uniform and stable feeding of the entire production line.
3. Secondary Machine (Secondary Fine Plasticization & Filtration Unit): Fitted with a 280 hard tooth surface reducer for stable and efficient power transmission. It has a 170mm shaft tube and 1.8-meter fuselage length. The screw also adopts 40Cr high-frequency quenched material with a sturdy large channel steel bracket. Core function: Perform secondary fine melting and homogeneous kneading on pre-plasticized materials from the main machine, eliminate material bubbles and plasticization dead angles, improve melt uniformity, cooperate with the screen changing system to complete deep impurity removal, and greatly enhance material purity.
4. Special Screen Changer for Secondary Machine: Adopts a 350*350 double-plate double-screen non-stop hydraulic die head with a dedicated hydraulic pump station. Core value: Realize fully automatic non-stop screen changing without shutdown or disassembly. It continuously intercepts sediment, aging impurities and carbonized black spots, thoroughly solving the problems of strip breakage, large production capacity loss and residual impurities caused by screen changing in traditional equipment. It supports 24-hour continuous stable production with smooth and flawless extruded strips.
5. Tertiary Machine (Tertiary Final Plasticization & Discharging Unit): Configured with a 280 hard tooth surface reducer, 170mm shaft tube, 1.5-meter fuselage length, 40Cr high-frequency heat-treated screw and reinforced channel steel bracket, as well as a 450-type electric gear die head. Core function: Complete the final fine plasticization and pressure-stabilized discharging of materials. The electric gear die head ensures uniform discharging pressure, neat and consistent strip thickness, and accurately controls discharging speed and forming effect, guaranteeing uniform, dense and full finished particles.
6. Heating Rings for Secondary & Tertiary Machines: Exclusive supporting heating components that precisely match the fuselage size of secondary and tertiary machines. Cooperating with the electromagnetic heating system to realize zoned constant temperature control, it delivers uniform heating and precise temperature adjustment, avoiding local high-temperature carbonization and low-temperature poor plasticization, and adapting to the low-temperature melting characteristics of PE materials for drip irrigation belts.
7. 80 Type Fully Automatic Feeder: Matched with a 5-meter extended feeding machine and dedicated starting electric box to realize fully automatic uniform feeding. It can intelligently adjust the feeding speed according to the melting load of the equipment, eliminating blockage, stuffy machine and empty material problems caused by uneven manual feeding. The whole-process automatic feeding greatly saves labor costs and stabilizes the production rhythm.
8. 2500 Type Vibrating Screen: Adopts dual-motor drive and full stainless steel structure with corrosion resistance, rust resistance and high screening efficiency. Core function: Classify and screen formed particles, separate broken materials, dust and connected particles, screen out high-quality finished particles with uniform specifications, and improve the overall product qualification rate.
9. 1-ton Stainless Steel Storage Bin: Made of full stainless steel and equipped with a special fan, hopper and conveying pipeline, it can automatically air-dry, dedust and store materials, preventing finished particles from moisture, dust adhesion and agglomeration. It ensures dry and clean particles and facilitates batch storage, packaging and export sales.
10. 4-meter High-speed Friction Cleaning Machine: The extended 4-meter fuselage is designed for high-speed friction cleaning of stubborn sediment and dirt on the surface of waste drip irrigation belts, deeply removing surface dirt and reducing the impurity content of materials from the source, laying a foundation for subsequent granulation quality improvement.
11. 630 Type Dehydrator: Special rear dehydration equipment that quickly removes residual water from cleaned materials, reduces material moisture content, eliminates bubbles, strip breakage and particle voids caused by wet material feeding, and stabilizes granulation quality.
12. 60kw Electromagnetic Heating System: Equipped with 60kw high-power electromagnetic heating, matching thermal insulation cotton and 50-meter special cables. Compared with traditional resistance heating, it features faster temperature rise, more precise temperature control and more uniform heating, saving more than 30% electricity. With excellent thermal insulation effect and reduced heat loss, it avoids local overheating and carbonization of materials.
13. Special Starting Electric Cabinet for Granulator: Customized professional electric control system that centrally manages the start-stop, speed regulation, temperature control and screen changing of the entire production line. It has multiple protection functions of overload, short circuit and over temperature, featuring simple operation, safety and stability, and reduced equipment failure risks.
14. Supporting Drive Motors: Equipped with 1 set of 90kw-4 motor and 1 set of 45kw-4 motor. The high-power pure copper motors deliver sufficient, stable and high-bearing power, adapting to continuous heavy-duty operation of the entire production line with stable power output to ensure high and stable yield.
15. Core Product Characteristics
16. Exclusive Three-stage Graded Plasticization Process: The 210 type drip irrigation belt three-step machineadopts three-stage progressive melting and plasticization, completing exhaust, homogenization and impurity removal step by step. It perfectly adapts to the thin, high-sediment and aging-prone characteristics of drip irrigation belts, thoroughly solving the problems of uneven plasticization, numerous black spots and frequent strip breakage of single-step machines.
17. High-efficiency Non-stop Hydraulic Screen Changing: The secondary machine is fitted with a 350*350 double-plate double-screen hydraulic screen changing die head for full-process non-stop screen changing, zero production capacity loss and no shutdown strip breakage. It supports 24-hour continuous mass production with far higher production capacity and stability than ordinary granulation equipment.
18. Wear-resistant & Dirty Material Adaptability: All core screws adopt 40Cr high-frequency quenching heat treatment, matched with hard tooth surface reducers and channel steel reinforced fuselage. The equipment is wear-resistant and impact-resistant, capable of long-term processing of high-sediment waste drip irrigation belts with an extremely low failure rate.
19. Electromagnetic Constant Temperature for Quality & Energy Saving: 60kw electromagnetic zoned heating ensures uniform temperature rise and precise control, eliminating material carbonization and bubbling while reducing energy consumption, greatly cutting electricity costs for long-term mass production.
20. Full-process Closed-loop Automation: Integrated automatic operation of feeding, friction cleaning, dehydration, granulation, screening and storage with minimal manual intervention and simple maintenance. The finished products feature uniform appearance and high purity.

III. Equipment Working Process

After sorting and pretreatment, waste drip irrigation belt materials are uniformly fed by the 80-type 5-meter automatic feeding machine → Surface sediment and dirt are deeply removed by the 4-meter high-speed friction cleaning machine → Quick dehydration and drying by the 630-type dehydrator → Clean materials are sent into the main machine of the 210 type drip irrigation belt three-step machine for primary pre-plasticization, exhaust and coarse filtration → Materials enter the secondary machine for secondary fine plasticization and homogenization, with deep impurity removal via the 350*350 hydraulic non-stop screen changer → Materials are sent to the tertiary machine for final plasticization and pressure-stabilized strip discharging through the 450-type electric gear die head → Strips are cooled and shaped then pelletized → Graded screening by the 2500-type dual-motor stainless steel vibrating screen to remove broken materials and dust → Qualified finished particles are sent to the 1-ton stainless steel storage bin for air drying, dust removal and storage. The whole process features coherent procedures, high automation and stable quality.

1. Application Fields

The 210 type drip irrigation belt three-step machine focuses on the agricultural waste plastic regeneration field, professionally recycling and processing waste farmland PE drip irrigation belts, micro-spray belts, agricultural PE hoses, aging irrigation plastic pipes and other materials. The high-quality recycled PE particles produced can be secondarily used to manufacture new drip irrigation belts, agricultural pipes, plastic accessories, plastic plates and other products. It is widely suitable for large-scale mass production of agricultural renewable resource factories, plastic granulation plants and agricultural material recycling and processing enterprises.

1. FAQ

Q1: Can high-sediment dirty and old drip irrigation belts be directly processed by this equipment?

A: Yes. The 210 type drip irrigation belt three-step machine is equipped with front-end purification devices including a 4-meter extended high-speed friction cleaning machine and a 630-type dehydrator, combined with three-stage plasticization and double-plate double-screen non-stop fine filtration. It can strip sediment, impurities and aging carbonized substances layer by layer. Specially designed for high-impurity farmland drip irrigation belts, it requires no complex pretreatment and produces finished products with high cleanliness.

Q2: What are the core advantages of three-step granulation compared with ordinary single and two-step equipment?

A: Ordinary single and two-step equipment adopts one-time melting with high pressure and incomplete exhaust, easily causing bubbling, carbonization and strip breakage of drip irrigation belt materials, as well as numerous black spots and poor appearance of finished particles. In contrast, the 210 type drip irrigation belt three-step machine realizes graded progressive plasticization, exhaust and impurity removal with more stable pressure and temperature and thorough plasticization. Combined with a non-stop screen changing system, it outperforms ordinary equipment in stable production, finished product quality and production efficiency.
