Three-Stage Plastic Pelletizing Line | High-Capacity & High-Purity Waste Plastic Recycling Pelletizing Solution
As a key national pilot city for the national waste recycling system, Linyi has built a complete industrial chain: Waste Resources → Collection Outlets → Sorting Centers → Processing Plants. The city processed 2.81 million tons of various waste materials in 2023, with surging demand for pelletizing waste paper pulp residue, woven sacks and snake-skin bags. As China’s major woven bag distribution hub, Linyi’s Lantian Woven Bag Market is the country’s largest specialized trading center with annual wholesale volume exceeding 2 billion pieces. Tancheng and Linshu Counties operate complete waste paper collection networks generating abundant waste pulp recycling demands. Local manufacturers commonly struggle with low pellet output and poor purity when processing high-moisture, high-impurity feedstock. Focused on domestic plastic recycling equipment R&D, Tenglong develops the Three-Stage Plastic Pelletizing Line matching local industrial and regulatory requirements, delivering one-stop high-yield high-purity recycling solutions for large-scale waste plastic processors in Linyi, southern Shandong and East China and supporting compliant eco-friendly production per circular economy regulations.

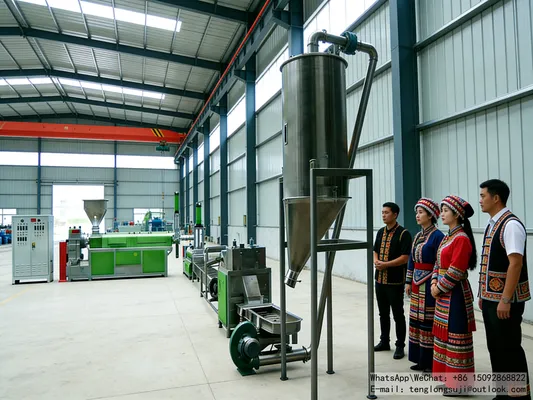

Three-Stage Plastic Pelletizing Line
1. Product Overview
The three-stage plastic pelletizing line is tailor-made for clients requiring large output and premium pellet quality, functioning as core processing gear for difficult-to-recycle feedstock including paper pulp scraps, woven sacks and snake-skin bags in Linyi. Benefiting from Hedong National Recycled Plastics Base’s cluster advantages and abundant raw materials supplied by Lantian Woven Bag Market plus Tancheng waste paper recycling base, the unit adopts triple melting & triple filtration technology. Raw material undergoes three cycles of thermal melting and impurity separation to produce dense, smooth pellets with drastically boosted productivity. Widely applicable for wet-state pelletizing of paper pulp residue, snake-skin bags and woven sacks, it excels at high-moisture high-impurity waste materials prevailing across Linyi. It helps enterprises build the “Resource-Product-Waste-Recycled Resource” circular chain and fulfills the core task of lifting comprehensive waste plastic utilization and cultivating large-scale processors defined in Linyi Waste Recycling System Implementation Plan.
2. Core Technical Advantages
Three-Stage Process Ensures High Purity & Large Output
Designed for Linyi’s typical high-impurity high-water-content feedstock (paper pulp scraps, woven bags, snake-skin sacks), triple heating melting plus triple filtration thoroughly removes paper fiber, silt and contaminants to greatly upgrade pellet purity. Pre-crushed and cleaned materials can go straight into wet pelletizing without extra crushing, hitting hourly output of 400–600kg/h to satisfy massive production at Hedong Recycled Plastics Base, raising factory yield and cutting material wastage.
Custom Screw & Premium Material for Outstanding Durability
Screws are forged from 38CrMoAl alloy steel after quenching, tempering and nitriding treatment for superior wear and corrosion resistance and extended service life, perfectly suited for long-hour heavy-duty processing of impurity-laden paper pulp and woven bag scraps. Optimized screw geometry delivers stable operation with minimal breakdown frequency for high-moisture dirty feedstock, supporting uninterrupted continuous production to cut maintenance and running cost as pursued by local Linyi recyclers.
Water-Cooled Strand Pelletizing for Uniform Good-Looking Pellets
Equipped with variable-frequency controlled water-ring strand cutting technology, the machine accurately regulates pellet dimension for uniform granules with smooth cutting surfaces, fully compliant with downstream manufacturing and commodity trading standards. Superior pellet appearance raises added value of recycled pellets for Linyi recyclers to access premium plastic weaving and injection molding buyers surrounding Lantian Woven Bag Market and strengthen product market competitiveness.
Strong Compatibility for Diversified Raw Materials
Optimized for mainstream local recycled feedstock (paper pulp residue, woven sacks, snake-skin bags), the line runs stably and maintains consistent pellet quality even with high moisture and heavy impurities without frequent parameter adjustment. Its versatile design adapts effortlessly to paper scrap recycling in Tancheng & Linshu and woven bag processing around Lantian Market, maximizing equipment utilization rate amid Linyi’s diverse waste plastic varieties.
3. Main Technical Specifications (Tenglong TL Series)
Sturdy TL three-stage pelletizing lines cater to medium & large-scale waste plastic recyclers around Linyi with flexible model selection based on production capacity and feedstock features:
| Item | TL-160 (With Die Head) | TL-180A (Without Die Head) |
|---|---|---|
| Applicable Raw Material | Premium grade plastics + wet-processed paper pulp, snake-skin bags, woven sacks | Premium grade plastics + wet-processed paper pulp, snake-skin bags, woven sacks |
| Hourly Capacity (kg/h) | 400–500 | 500–600 |
| Main Screw Dia./Rated Power | Φ160×3600mm /90KW 6P | Φ180×2500mm /90KW 4P (special for squeezing excess water) |
| Pelletizing Mode | Water-cooled strand cutting with variable frequency speed control | Water-cooled strand cutting with variable frequency speed control |
| Cooling Tank | 3m–5m stainless steel water tank | 3m–5m stainless steel water tank |
4. Equipment Composition & Auxiliary Parts
Easy-operate pelletizer for paper pulp/woven/snake-skin bag recycling requires no specialized technicians to reduce factory labor cost, realizing full-automatic workflow from plastic melting to finished pellet storage matching standardized production rules of Hedong Recycled Plastics Base & Luozhuang Economic Development Circular Industrial Park:
- Three-Stage Main Extruder: Triple melting & triple filtration screw system eliminates paper fiber and dirt effectively to secure high pellet purity;
- Cooling Water Tank: 3–5m stainless steel tank rapidly shapes extruded plastic strands to avoid deformation and guarantee attractive pellet appearance;
- Variable-Frequency Water-Cooled Strand Cutter: Adjustable cutting size to meet customized dimension demands from different downstream purchasers;
- Dehydration & Conveying Assembly: Air-blow feeding device + drying strand rack removes surplus moisture to stop pellet agglomeration especially under wet pelletizing working conditions;
- Storage & Screening Machine: Integrated 300kg air-feed hopper + vibrating sieve stores and classifies finished pellets, filters out uniformly-sized granules to reduce production loss and boost finished product rate.
5. Application Scenarios & Target Clients
Supported by national circular economy policy, Hedong recycled plastics cluster plus ample raw materials from Lantian Woven Bag Market and Tancheng waste paper base, the Three-Stage Plastic Pelletizing Line serves large-scale waste plastic recycling projects across southern Shandong and East China, focusing on Linyi domestic and peripheral manufacturers:
- Large professional recyclers of paper scraps, woven bags and snake-skin sacks settled inside Hedong Recycled Plastics Base and Luozhuang Circular Economy Industrial Park for bulk production;
- High-output high-quality pellet recycling projects aiming for productivity upgrade and premium downstream market access;
- Processing sites for high-moisture high-impurity waste including Tancheng & Linshu paper scrap factories and woven bag processors nearby Lantian Market;
- Medium & large-sized waste plastic manufacturers choosing TL-160 or TL-180A flexibly according to feedstock characteristics and production targets.
Three-Stage Plastic Pelletizing Line
6. Equipment Value of Tenglong Three-Stage Pelletizer
Amid Linyi’s demonstration city construction and Hedong industrial base upgrading, the Tenglong three-stage pelletizing line resolves core pain points of low productivity and poor pellet quality when recycling high-impurity high-moisture waste plastics. Its unique three-stage design greatly improves pellet purity and hourly yield, perfectly compatible with mainstream local feedstock (paper pulp residue, woven sacks, snake-skin bags). It cuts labor and maintenance expense and helps manufacturers meet Comprehensive Utilization Specification for Waste Plastics to achieve legal, eco-friendly and high-efficiency production.
Three-Stage Plastic Pelletizing Line A flagship large-capacity recycling equipment locally manufactured in Linyi, it conforms to regional industrial policies and satisfies production needs of factories around Hedong Base and Lantian Woven Bag Market. It guides Linyi waste plastic recyclers to optimize resources and lift core competitiveness, promoting local industry’s shift from scattered small workshops to standardized large-scale operation and accelerating high-value recycling of woven bag & paper scrap waste for high-quality circular economy development. It is the ideal core equipment for large-scale waste plastic pelletizing production lines.
