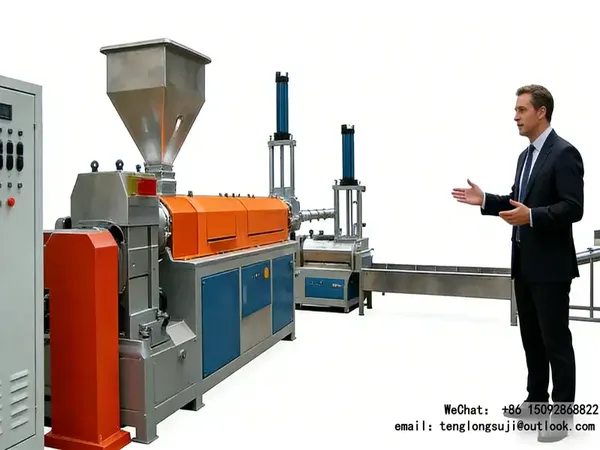

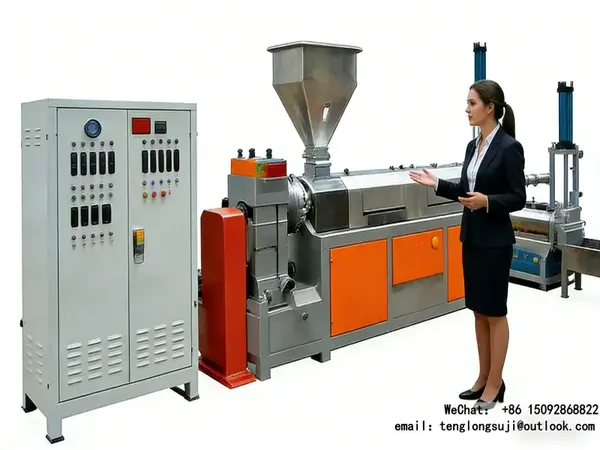

New Generation 150-type Plastic Pelletizing Machine – Medium-sized Full-automatic Waste Plastic Recycling Pelletizing Equipment with Moderate Configuration

In the field of medium and small-scale plastic recycling processing, the 150-type plastic pelletizing machine has become the core model with the strongest industry versatility and the highest production return rate at present, relying on its moderate production capacity, solid body structure and high energy efficiency. Most medium-end pelletizing equipment has common defects such as thin body frame, non-wear-resistant screw, high heating energy consumption, uneven discharging and simple post-processing structure, resulting in unstable mass production, inconsistent pellet quality and high operation and maintenance costs.

Our newly upgraded high-configured 150-type plastic pelletizing machine is fully equipped with an industrial thickened body, high-frequency heat-treated wear-resistant screw and barrel, electromagnetic energy-saving heating system and frequency-conversion linkage post-processing complete set. It realizes a fully automatic closed-loop production process including feeding, extrusion, filtration, cooling, pelletizing, dust removal, screening and material storage, perfectly meeting the stable mass production needs of medium-sized recycling factories.

The complete set of 150-type plastic pelletizing machine features five core advantages: high wear resistance, large production capacity, low energy consumption, stable operation and high-quality finished products. Different from ordinary low-end 150-type models, all core extrusion components are strengthened by high-frequency quenching treatment, featuring high hardness, wear resistance and carbon deposition resistance, which are not easy to be scratched or damaged during long-term processing of mixed materials and impure recycled materials.

The thickened channel steel frame improves the overall stability of the equipment and eliminates jitter and deviation during high-speed extrusion. The centralized electromagnetic heating ensures fast temperature rise, uniform temperature control and significant power saving. Equipped with complete post-processing devices including shaking and blowing unit, vibration screening and automatic material storage, the finished plastic pellets are clean, regular and high in purity, greatly improving the market price and product competitiveness. The equipment is applicable to both wet and dry raw materials, with fast startup, low failure rate and single-person operability, serving as the core main equipment for medium-sized plastic recycling mass production.

This equipment is widely suitable for recycling and pelletizing of various raw materials such as PP/PE films, plastic woven bags, pipe crushing materials, injection molding leftover materials and daily waste plastics. The produced pellets can be directly used in downstream production processes including injection molding, blow molding and extrusion modification. It is applicable to mass production of medium and small-sized plastic recycling processing plants, plastic product factories and environmental protection recycling enterprises, with wide application scenarios and fast return on investment.

1. Detailed Parameters, Accessory Functions and Core Values of Complete Equipment
2. High-power Feeder (1.5KW Cycloidal Pin Motor)

Adopting a cycloidal pin wheel transmission structure, it delivers stable power output, large torque, anti-slip performance and heavy load resistance. The dedicated 1.5KW motor feeds materials at a constant speed and can adjust the feeding amount according to the extrusion speed, completely avoiding material blockage, empty feeding and unstable feeding speed. It maintains continuous and stable extrusion pressure, ensures uniform plasticization from the source and improves production continuity.

2. Main Unit Assembly of 150-type Plastic Pelletizing Machine

Equipped with a 250-type hard-tooth low-noise reducer, it features high transmission accuracy, low operating noise and strong bearing capacity, which is not easy to wear or break teeth during 24-hour continuous mass production and stably outputs high torque power. The core screw has a diameter of 150mm and a length of 3000mm, made of 40CR material with high-frequency quenching treatment, featuring high strength, good toughness and excellent wear resistance, suitable for extrusion of various hard and mixed materials.

The feeding port is added with a wear-resistant alloy layer to resist friction and wear caused by impurities, greatly extending the service life of the feeding section. The matching barrel has a diameter of 194mm and a length of 3000mm, made of 45# steel with high-frequency treatment, which is high-temperature resistant, high-pressure resistant, non-deformable, smooth in inner wall and free of carbon deposition, reducing material residue and scorching problems.

The main frame is welded with thickened channel steel, with stable structure and strong shock resistance, no jitter during high-speed operation. The 45KW high-power main motor provides sufficient power and full extrusion pressure to ensure stable production capacity. It is equipped with a 350mm diameter electric machine head and a 2.2KW-6 adjustable-speed head motor, realizing automatic and uniform screen replacement with large filtering area and fast screen changing speed, reducing shutdown losses.

3. Main Heating System (1 Set of 60KW Electromagnetic Heating)

Adopting industrial electromagnetic induction heating technology, it has higher thermal conversion rate, faster temperature rise and more uniform temperature penetration than traditional resistance heating. It can quickly realize overall melting and plasticization of materials, eliminating local overheating scorching and low-temperature unplasticized material problems. The overall energy consumption is reduced by more than 20% compared with traditional heating, with remarkable long-term energy-saving effects. Meanwhile, precise temperature control adapts to various plastic melting processes.

4. Stainless Steel Cooling Water Tank (320*5000mm)

Made of all stainless steel, it is corrosion-resistant, rust-proof, clean in water quality and not easy to scale. The 5000mm extended water tank design realizes uniform, sufficient and thorough cooling and shaping of extruded plastic strips, ensuring consistent hardness, straight shape and no adhesion of plastic strips. It lays a good foundation for subsequent precise pelletizing and effectively avoids defective products such as uneven pellet length, adhesion agglomeration and deformation.

5. 0.55KW Shaking and Blowing Integrated Machine

Specially used for vibration separation and air dust removal of newly cut pellets, it effectively breaks up adhered pellets, removes surface dust, water vapor and debris impurities, improves the cleanliness of finished pellets and presents a cleaner and more transparent pellet appearance.

6. 220-type Pelletizer (4KW Motor)

A special matching pelletizing device for pelletizing machines, with precise cutting edge and stable cutting performance. The 4KW motor provides sufficient power to adapt to high-speed extrusion and strip pelletizing. The finished pellets have flat cuts, no burrs and no debris, with uniform and regular appearance, suitable for large-scale continuous pelletizing operation.

7. Dual-motor Vibrating Screen (0.18KW×2 Units, 201 Stainless Steel Screen Mesh)

Dual motors vibrate synchronously with uniform screening force and no dead angles. The 201 stainless steel screen mesh is rust-proof, wear-resistant and uniform in aperture, which can accurately screen pellets of different sizes, debris and impurities, automatically classify qualified and defective products, and ensure uniform specifications and consistent quality of factory pellets.

8. 201 Stainless Steel Storage Bin (4KW Fan Motor)

The bin body is made of 201 stainless steel, dust-proof, rust-proof and easy to clean. The 4KW high-power fan realizes continuous air drying and dust removal, further removing residual water vapor and floating dust on pellets. The finished pellets are dry and clean, not easy to be damp or deteriorated during storage, convenient for packaging, storage and transportation.

9. National Standard Distribution Cabinet

Equipped with full set of national standard electrical components, with regular circuit layout and perfect protection. It has multiple protection functions including overload, short circuit and phase loss protection, featuring safe and stable operation and low failure rate. It supports equipment linkage start-stop and frequency conversion speed regulation, with simple and safe operation, suitable for long-term industrial mass production.

1. Core Product Features
2. Strengthened Wear-resistant Core Configuration: The screw and barrel are fully treated by high-frequency quenching, and the feeding port is reinforced with wear-resistant alloy, realizing impurity resistance, wear resistance and carbon deposition resistance. It adapts to the production of complex waste mixed materials and greatly prolongs the service life of the equipment.
3. Low-noise and Stable Transmission: The 250-type hard-tooth reducer operates silently with large torque. The thickened channel steel frame realizes shock and jitter resistance, no deviation or jitter during high-speed extrusion, ensuring extremely stable mass production.
4. Electromagnetic Energy-saving Constant-temperature Plasticization: The 60KW electromagnetic heating system features fast temperature rise, uniform temperature control and lower energy consumption, completely solving common pellet defects such as black spots, bubbles and poor plasticization, ensuring stable finished product quality.
5. Full-process Refined Processing: Equipped with complete cooling, shaking and blowing, pelletizing, screening and storage devices, multi-stage purification and dust removal produce clean, regular and high-quality pellets with higher market premium.
6. High Automation: The whole machine operates in linkage mode with simple operation and low failure rate. Single person can supervise mass production, reducing labor cost and production threshold.

III. Working Process

Pre-cleaned materials are uniformly sent to the feeding port of 150-type plastic pelletizing machine by the high-power feeder → constant-temperature melting and plasticization via electromagnetic heating → high-pressure extrusion and pushing by screw → impurity filtration and removal by electric machine head → uniform extrusion of plastic strips → water cooling and shaping in extended stainless steel water tank → precise pelletizing and shaping by 220-type pelletizer → dust removal and dispersion by shaking and blowing integrated machine → classified screening by dual-motor vibrating screen → air drying and storage in stainless steel bin. The whole process is an automatic closed-loop operation with coherent procedures and stable production.

1. Application Fields

Widely applied in medium and small-sized waste plastic recycling plants, leftover material recycling of plastic product enterprises, waste film/woven bag/pipe crushing material pelletizing, and rough processing of new material pellets. It can process common general plastics such as PP, PE, PS and ABS. The finished pellets are applicable to various secondary processing production including injection molding, blow molding, extrusion and modified filling.

1. FAQ

150-type plastic pelletizing machineQ1: Is the  suitable for medium-scale mass production? What is the hourly output?

A: The150-type plastic pelletizing machine is a standard medium-scale mass production model, suitable for stable production of medium and small-sized factories. According to the dry-wet state and impurity content of raw materials, the hourly output of clean materials can reach 280–350kg. It supports 24-hour continuous stable production, fully meeting the medium-scale centralized pelletizing production demand.

Q2: Can this equipment process waste mixed materials with impurities and oil stains?

A: Yes. The feeding port is reinforced with wear-resistant alloy, and the high-frequency heat-treated screw and barrel have strong wear resistance. Combined with precise filtration of the electric machine head, it can effectively process recycled materials with mild impurities and oil stains. With simple pre-cleaning treatment in the early stage, the appearance and purity of finished pellets can fully meet the standards.

Q3: Is the equipment difficult to operate and maintain? Can novices start production?

A: The whole machine adopts national standard intelligent electric control, one-click linkage start-stop and automatic constant temperature, with simple and intuitive operation, which novices can master after simple training. The core accessories are wear-resistant and durable with low failure rate. Daily maintenance only includes screen cleaning, lubrication inspection and water tank cleaning, with extremely low operation and maintenance costs.

Call to Action

Welcome free technical consultation to obtain accurate production capacity, power consumption parameters, raw material adaptation solutions and quotation of 150-type plastic pelletizing machine!
