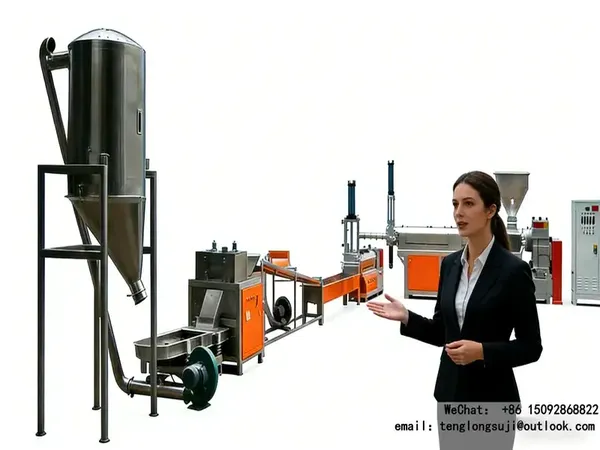

Full Automatic Universal 180 Type PE Granulator | Two-Stage Wet & Dry Waste Polyethylene Recycling Pelletizing Equipment

Meeting the recycling and processing demands of waste polyethylene materials such as PE films, packaging scraps, greenhouse films, and pipe leftovers, the 180 type PE granulator has become the core mass-production equipment for medium-sized plastic recycling factories, featuring exclusive configurations including two-stage extrusion, constant-temperature energy saving, non-stop screen changing, and professional water removal. PE materials are soft in texture, high in moisture content and strong in ductility, so ordinary pelletizing equipment is prone to common problems such as uneven plasticization, particle adhesion, residual impurities and unstable production capacity. Targetedly adapted to the characteristics of PE materials, this fully upgraded 180 type PE granulator is fully equipped with industrial-grade high-grade accessories, realizing full-process automatic production including forced feeding, two-stage fine plasticization, hydraulic filtration, water cooling shaping, water shaking and air drying, variable-frequency pelletizing and automatic material storage. Supporting both wet and dry processing with stable output and low consumption, it perfectly adapts to all kinds of waste PE material recycling and pelletizing scenarios.

The complete 180 type PE granulator boasts five core advantages: two-stage fine plasticization, thorough water removal, non-stop stable production, wear resistance and durability, and high-purity pellets. Different from ordinary single-stage PE pelletizing equipment, its primary and secondary two-stage structure completely solves industry common defects of soft PE materials such as loose plasticization, uneven mixing and incomplete impurity filtration. The core screw and barrel are processed with high-frequency quenching strengthening technology, and the feeding port is added with a wear-resistant alloy layer to resist sediment and dust impurities mixed in recycled PE materials, ensuring no easy wear or carbon deposition under long-term heavy-load production. Equipped with electromagnetic + heating ring dual-zone precise temperature control, left-right hydraulic non-stop screen changing and full-line variable-frequency speed regulation system, it accurately matches the low-temperature melting process of PE, eliminating material scorching and raw material residue. The finished pellets are compact, transparent, dry and non-adhesive, greatly improving market premium and product competitiveness.

With strong universal adaptability, the equipment can widely process various polyethylene materials including waste PE greenhouse films, packaging films, plastic bags, PE pipes, injection molding leftovers and drip irrigation tapes. The produced high-quality recycled PE pellets can be directly used for secondary processing such as film blowing, wire drawing, injection molding and modified filling, suitable for large-scale production of small and medium-sized plastic recycling plants, environmental protection recycling enterprises and plastic product factories.

1. Detailed Parameters, Accessory Functions and Core Values of Complete Equipment
2. 600×600 Variable-Frequency Forced Feeder (15KW Motor)

Adopting a large-caliber feeding structure, it is specially designed for light recycled materials such as PE films, sheet and block materials, completely solving the problems of bridging, material blocking, feeding stuttering and uneven feeding of soft PE materials. The 15KW high-power variable-frequency motor intelligently matches the feeding amount according to the extrusion speed of the main machine, realizing uniform forced feeding and maintaining stable extrusion pressure of the main machine. It ensures uniform plasticization of PE materials from the source, effectively improves production continuity and overall output, and avoids strip breaking and defective pellets caused by feeding fluctuation.

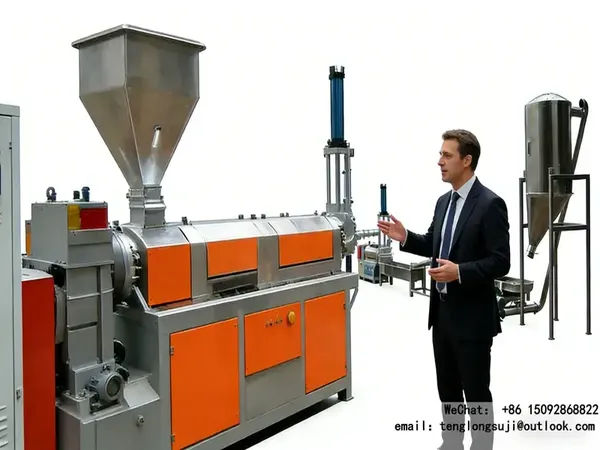

2. 180 Type Main Granulator Assembly

Equipped with a 315-type low-noise hard tooth reducer, it features large transmission torque, strong bearing capacity, silent operation, supporting 24-hour continuous heavy-load mass production with low wear, no tooth breakage and low failure rate, fully adapting to the high-frequency production conditions of soft PE materials. The core 180×3000mm screw is made of 40CR steel with high-frequency quenching treatment, featuring high hardness, good toughness, wear resistance and carbon deposition resistance, perfectly matching the soft, easy-melting and easy-adhesive characteristics of PE polyethylene materials. The feeding port is reinforced with a wear-resistant alloy layer to effectively resist friction loss caused by sediment impurities and greatly extend the service life of core accessories.

The supporting 232×3000mm barrel is made of No.45 steel with high-frequency strengthening treatment, featuring high temperature resistance, high pressure resistance and smooth inner wall without material adhesion, preventing residual adhesion, scorching and carbon deposition of soft PE materials. Powered by a 75KW special main motor with sufficient power reserve and stable extrusion pressure, the heating system adopts a combined mode of 1 set of 80KW electromagnetic heater + 2 sets of heating rings. The electromagnetic heater heats up fast with high energy efficiency, while the dual heating rings realize zoned precise temperature compensation with uniform overall temperature. Accurately matching the exclusive melting temperature range of PE, it completely solves the industry pain points of local overheating carbonization and insufficient low-temperature plasticization.

3. 165 Type Auxiliary Granulator Assembly

Matched with a 225-type Changzhou-made low-noise hard tooth reducer, it delivers high transmission accuracy, stable operation, low failure rate and strong durability. Equipped with a 165×1500mm 40CR high-frequency screw and a 219×1500mm No.45 steel barrel, it performs secondary fine plasticization, mixing, extrusion and purification on preliminarily melted PE materials from the main machine, making loose and soft PE materials melt more thoroughly with denser and more uniform texture, and effectively improving the compactness, transparency and purity of pellets.

It is fitted with a 350 large-diameter mesh left-right hydraulic non-stop screen changing head, and the 4KW pump station motor provides stable hydraulic power for alternate screen replacement without shutdown or strip breaking, greatly reducing shutdown loss and waste generation and maximizing production continuity. The large-size mesh provides sufficient filtration area to thoroughly intercept dust, sediment, burnt materials and impurities in PE materials, significantly improving the quality of finished recycled PE pellets. The 30KW special auxiliary motor is precisely linked with the main machine, realizing reasonable two-stage extrusion ratio, high efficiency and synchronous stable operation.

4. 350 Type Stainless Steel Cooling Water Tank (4000×350×260mm)

Made of full stainless steel with rust resistance, corrosion resistance, easy cleaning and non-scaling performance, it adapts to the long-term production conditions of humid PE materials. The 4-meter extended water tank realizes uniform and sufficient water cooling shaping for high-temperature soft PE extruded strips after two-stage extrusion, enabling soft PE strips to cool, harden and flatten quickly without adhesion, deformation or deviation. It provides high-quality blanks for subsequent precise pelletizing and water removal processes, avoiding uneven pellet length, adhesion caking and high defective rate.

5. 2500×300 Type 201 Stainless Steel Water Shaking & Strip Drying Machine

Made of 201 stainless steel with rust resistance, durability and good airtightness, it is specially designed for the core pain points of high water content and easy adhesion of PE materials after cleaning. Equipped with a 1.1KW shaking motor and a 1.5KW blower motor for dual cooperative operation, it thoroughly shakes off and blows away residual water on the surface of PE strips through high-frequency vibration separation and high-pressure air blowing, fundamentally solving the problems of damp PE pellets, adhesion, mildew and caking, ensuring dry and clean finished pellets without additional sun drying treatment.

6. 180 Type Matching Pelletizer (220 Type Alloy Roller Cutter, 3KW Variable-Frequency Motor)

The high-hardness alloy roller cutter is wear-resistant, impact-resistant and sharp in cutting, perfectly adapting to the toughness characteristics of soft PE materials, with flat cuts without burrs, crumbs or powder residue. The 3KW variable-frequency speed regulation motor can freely adjust the pelletizing speed and flexibly change the pellet length according to production demands and extrusion speed, producing finished pellets with uniform size and consistent appearance that meet high-end market material standards.

7. 1 Ton Stainless Steel Storage Bin (3KW Fan Motor)

Adopting 201 stainless steel with dustproof, rust-proof and easy-clean performance and no material accumulation, the 3KW high-power fan continuously removes dust, air-dries and dissipates heat, further eliminating floating dust and residual moisture on the surface of finished recycled PE pellets, preventing pellet damp deterioration and dust pollution. It ensures dry and clean finished products, facilitating batch warehousing, packaging, transportation and sales.

8. National Standard Variable-Frequency Distribution Box

Adopting full national standard high-quality electrical components with high safety protection level, it supports dual variable-frequency linkage speed regulation of main and auxiliary machines, with multiple safety protections against overload, short circuit and phase loss. Featuring neat wiring, stable operation, low failure rate and high safety, the whole machine supports one-click linkage start and stop with a simple and intuitive operation panel for quick beginner operation, adapting to long-term industrial continuous mass production.

1. Core Product Features
2. Two-Stage Fine Plasticization Process: Primary rough refining + secondary fine refining optimized for soft PE materials, realizing thorough material melting and uniform mixing. The produced pellets are compact, transparent, free of raw materials, looseness and bubbles, with far better quality than single-stage equipment products.
3. Non-Stop Hydraulic Screen Changing: Left-right alternate screen changing design without shutdown or strip breaking, greatly improving effective machine operation rate and thoroughly solving the problems of high screen changing loss, production interruption and excessive waste of traditional PE pelletizing equipment.
4. High-Grade Wear-Resistant Core Components: The screws and barrels of main and auxiliary machines are all strengthened by high-frequency quenching, with alloy wear-resistant reinforcement at feeding ports, resisting sediment impurities, wear and carbon deposition, suitable for processing complex dirty and humid recycled PE materials.
5. Dual-Mode Precise Temperature Control: 80KW electromagnetic heating + dual heating ring zoned temperature control features fast heating, uniform temperature and power saving, accurately matching the low-temperature melting range of PE and eliminating material scorching and poor plasticization defects.
6. Professional Water Removal Process: The exclusive integrated water shaking and strip drying machine thoroughly removes surface moisture from extruded strips, solving the industry pain point of easy adhesion of high-moisture PE materials, ensuring qualified dryness of finished pellets without mildew or caking during storage.
7. Full-Frequency Intelligent Linkage: Full-process variable-frequency speed regulation for feeding, extrusion, water removal, pelletizing and storage with precise proportioning and stable operation. Single-person unattended mass production reduces labor costs and lowers production entry barriers.

III. Equipment Working Flow

Pretreated waste PE films, pipes and leftovers are evenly fed into the main machine of the 180 type PE granulator via the 600×600 variable-frequency forced feeder → Constant-temperature melting and plasticization through electromagnetic + dual heating ring system → Preliminary extrusion and conveying by main machine → Secondary fine plasticization and purification by 165 type auxiliary machine → Non-stop screen changing and impurity filtration via 350 large-mesh hydraulic head → Uniform extrusion of soft PE plastic strips → Water cooling shaping in 4000mm extended stainless steel water tank → Thorough water removal and air drying by 201 stainless steel water shaking and strip drying machine → Precise pelletizing and forming by 180 type variable-frequency alloy pelletizer → Air drying, dust removal and discharging via 1-ton stainless steel storage bin. The whole process is an automatic closed-loop operation with coherent procedures, stable production and high-quality finished products.

1. Application Fields

Widely applicable to various PE polyethylene plastic recycling scenarios, the equipment can process waste PE greenhouse films, packaging films, plastic bags, drip irrigation tapes, PE pipes, injection and extrusion leftovers and industrial PE waste materials. The high-quality recycled PE pellets are suitable for secondary processing including plastic film blowing, wire drawing and rope making, pipe extrusion, injection molding products and plastic modified filling, adapting to large-scale mass production of small and medium-sized recycling processing plants, plastic product factories and environmental protection recycling enterprises.

1. Common FAQ

Q1: Is the 180 type PE granulator specially adapted for soft PE film materials? Can it process both wet and dry materials?

A: The 180 type PE granulator is customized and optimized for the characteristics of soft polyethylene materials. Its two-stage plasticization, precise low-temperature temperature control and professional water removal system perfectly adapt to the production of films and soft waste materials. The equipment supports both wet and dry production; cleaned humid PE materials can be directly fed without thorough drying, adapting to diverse waste PE material processing scenarios of factories.

Q2: Is pellet adhesion and caking easy to occur during soft PE material production? What is the finished product quality?

A: No. Equipped with an exclusive stainless steel water shaking and strip drying machine, the equipment thoroughly removes water through dual processes of vibration separation and high-pressure air blowing, fundamentally eliminating damp adhesion, caking and mildew of recycled PE pellets. With two-stage fine plasticization and precise filtration, the finished pellets are compact, transparent, uniform in size, free of impurities, black spots and bubbles, with far better appearance and higher market price than products from ordinary single-stage equipment.

Q3: Is daily equipment maintenance difficult? Can beginners operate independently?

A: Equipped with a national standard intelligent variable-frequency electric control system featuring main-auxiliary machine linkage start-stop, automatic constant temperature and variable-frequency speed regulation, the operation panel is simple, intuitive and easy to understand. The manufacturer provides complete technical training and commissioning guidance; beginners can master operation skills in 1-2 days, and one person can independently operate the whole production line. The core accessories are wear-resistant and durable with extremely low failure rate, requiring only simple cleaning and maintenance daily with low operation and maintenance costs.

Call to Action

Free technical consultation for accurate production capacity, power consumption parameters, exclusive PE film production processes and factory quotation of the 180 type PE granulator!
