Dirty Film Washing & Pelletizing Line | One-Stop Recycling & Pelletizing Solution for Dirty Contaminated Plastic Films
As a national key pilot city for waste circular economy construction, Linyi boasts complete waste recycling network and massive annual recovery volume hitting 2.81 million tons in 2022. Agricultural mulch, greenhouse film and contaminated packaging film recycling sees explosive market demand. Being a major agricultural city in Shandong, Linyi consumes tremendous plastic films for farming; discarded dirty films carry heavy mud and grease contaminants and pose major processing challenges for local recyclers. Tenglong develops the Dirty Film Crushing Washing Pelletizing Line matching local industrial trends and government policies, delivering integrated one-stop solution for contaminated film recycling and pelletizing for film recyclers in Linyi, southern Shandong and East China, helping factories operate efficiently, legally and eco-friendly under circular economy regulations.

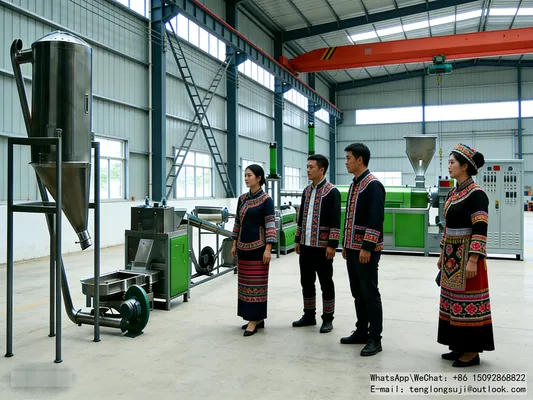

Dirty Film Crushing Washing Pelletizing Line
1. Product Overview
The Tenglong Dirty Film Crushing Washing Pelletizing Line is tailor-made one-stop recycling equipment for contaminated agricultural mulch, greenhouse film and used packaging film, the key production gear helping local recyclers tackle tough dirty feedstock processing issues. Supported by Linyi’s full-coverage waste recycling network and Hedong National Recycled Plastics Industrial Cluster, the production line innovatively integrates crushing, cleaning and wet pelletizing. Pre-crushed and cleaned films go straight into pelletizing without intermediate transfer. Equipped with horizontal forced feeding and electromagnetic heating technology, it efficiently removes residual moisture and volatile impurities to produce uniform pellets with low material loss and high yield, applicable for both agricultural waste film and industrial dirty packaging film recycling. It facilitates enterprises to build the circular economy loop: Resources → Finished Goods → Waste → Recycled Raw Materials, fulfilling the core target of improving comprehensive waste plastic utilization specified in Linyi Waste Recycling System Implementation Plan.
2. Core Technical Advantages
One-Stop Integrated Flow for Direct Wet Pelletizing of Dirty Films
Dirty agricultural & greenhouse films loaded with mud and grease require tedious multi-step pre-treatment on conventional production lines. This integrated line enables direct wet pelletizing post crushing and cleaning without independent drying procedure, greatly shortening workflow, cutting power and labor cost and eliminating repeated intermediate handling. It satisfies intensive large-scale production requirements of Hedong recycled plastics base and effectively lowers manufacturers’ operating expense.
Forced Feeding + Electromagnetic Heating for Remarkable Energy Saving
Horizontal forced feeder with honeycomb drainage holes drains excess water out of wet films efficiently. Matched with high-speed, energy-saving electromagnetic heating system cutting over 20% power consumption versus traditional heating modes, the unit removes moisture and volatile contaminants thoroughly and achieves adjustable output ranging from 250–500kg/h. The energy-efficient design complies with Linyi’s environmental supervision standards and national dual-carbon goals and enables factories to enjoy preferential taxation policies for comprehensive resource utilization.
High-Efficiency Degassing & Purification for High-Purity Recycled Pellets
Specially optimized screw structure plus independent exhaust vents eliminate entrapped moisture and volatile contaminants completely to avoid bubble formation and smoking during wet plastic extrusion, upgrading pellet purity, density and surface quality to satisfy downstream manufacturing standards. As benchmark equipment among PE film crushing washing pelletizing lines, superior granule quality raises added value of recycled pellets for Linyi recyclers to access high-end downstream buyers and lift market competitiveness in line with Linyi’s circular economy upgrade guideline and national waste plastic utilization compliance standards.
High Automation & Stable Continuous Operation
Full-linked automated production minimizes manual intervention and solves local recyclers’ labor shortage and high manpower cost difficulties. Optimized for all types of contaminated PE agricultural films widely collected in Linyi, the machine runs stably with low failure rate for non-stop mass production at Hedong recycled plastics base and avoids production loss caused by unexpected shutdown.
3. Main Technical Parameters (Tenglong TL Series)
TL-series dirty film processing lines have solid configuration with diversified capacities adaptable to small, medium and large recyclers around Linyi; clients select models by feedstock condition and target output:
| Item | TL-140 | TL-150 | TL-160 |
|---|---|---|---|
| Applicable Raw Material | All kinds of wet PE films: farm mulch, greenhouse film, contaminated packaging film | All kinds of wet PE films: farm mulch, greenhouse film, contaminated packaging film | All kinds of wet PE films: farm mulch, greenhouse film, contaminated packaging film |
| Output (kg/h) | 250–300 | 300–400 | 400–500 |
| Main Extruder Screw Dia./Power | Φ140×3300mm /75KW 6P | Φ160×3300mm /90KW 6P | Φ180×3800mm /110KW 6P |
| Auxiliary Extruder Screw Dia./Power | Φ140×1780mm /22KW 6P | Φ160×1780mm /30KW 6P | Φ180×1780mm /37KW 6P |
| Pelletizing Type | Vertical water-ring hot cutting with VFD speed control | Vertical water-ring hot cutting with VFD speed control | Vertical water-ring hot cutting with VFD speed control |
| Dehydration Equipment | High-speed vertical dehydrator | High-speed vertical dehydrator | High-speed vertical dehydrator |
4. Machine Configuration & Auxiliary Attachments
User-friendly wet pelletizing equipment for agricultural films cuts labor input for Linyi recycling factories and realizes full automatic production from dirty film crushing & washing to finished pellet storage complying with standardized production rules of Hedong Recycled Plastics Base:
- Crushing & Washing System: Film shredder + cleaning tank shred dirty films and wash away mud, oil stains and foreign impurities customized for Linyi’s contaminated agricultural feedstock features.
- Main Pelletizing Extruder: Horizontal forced feeder + two-stage screw extruder completes stable feeding, melting, degassing, filtering and extrusion with electromagnetic heating to secure high pellet yield and consistent quality.
- Water-Ring Hot Cutting System: Water-ring cutter + cooling tank rapidly shapes and cuts plastic strands into neat uniform pellets for higher finished product rate.
- Dehydration & Conveying System: High-speed vertical dehydrator + conveyor removes residual surface moisture to prevent pellet dampness and agglomeration and stabilize finished goods quality.
- Storage & Screening Unit: 300kg/500kg feed hopper integrated with vibrating sieve stores and grades pellets, screening out uniformly sized granules to reduce raw material waste and meet varied downstream purchase specifications.
5. Application Scenarios & Target Customers
Supported by national circular economy policies, Hedong recycled plastics industrial cluster and massive local agricultural & industrial film waste resources, the integrated film processing line serves dirty plastic recycling projects across southern Shandong and East China:
- Dirty PE film recyclers specializing in agricultural mulch, greenhouse film and waste packaging film processing, especially manufacturers settled inside Hedong Recycled Plastics Base for large-scale production;
- Waste film recycling projects requiring full-process wet pelletizing and streamlined workflow to simplify operation and cut energy & labor cost;
- High-output low-energy-consumption dirty film crushing & wet pelletizing production lines ranging from small to large capacity (250–500kg/h) for production efficiency improvement;
- Eco-focused circular economy recyclers eligible for central government budget subsidies and preferential tax policies under Linyi waste recycling incentive programs.
Dirty Film Crushing Washing Pelletizing Line
6. Tenglong Equipment Value
During Linyi’s construction as national circular economy demonstration city and Hedong industrial base upgrading, the Tenglong Dirty Film Crushing Washing Pelletizing Line resolves core drawbacks of traditional dirty film recycling: lengthy working procedures, excessive power consumption, limited output and poor pellet purity. The integrated workflow plus forced feeding & electromagnetic heating technology simplifies production, lowers labor & energy expenditure, improves pellet output and quality and helps manufacturers pass national waste plastic utilization compliance audit for green, legal and high-efficiency operation.
As a flagship dirty film recycling equipment manufactured locally in Linyi, it matches regional agricultural waste recycling characteristics and industrial policies following Hedong Base’s development principle of standardized industry and environmental priority. It optimizes resource allocation and strengthens core competitiveness of Linyi’s film recycling enterprises, promoting local waste plastic industry’s transformation from scattered family workshops to standardized large-scale operation, easing agricultural waste film disposal troubles to boost rural revitalization and circular economy development. It is the optimal one-stop recycling solution for contaminated PE film pelletizing.
