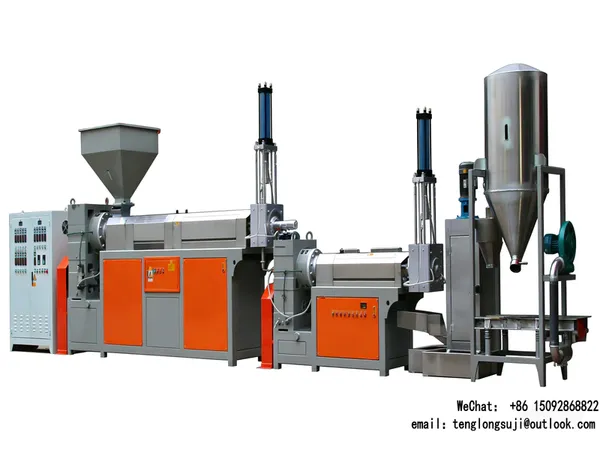

377-150 EPE Pearl Cotton Pelletizer | Fully Automatic Foam Plastic RecyclingEPE Pearl Cotton Pelletizer

The 377-150 EPE pearl cotton pelletizer is a professional recycling and pelletizing equipment independently developed for lightweight foam materials such as EPE pearl cotton, foam plastic scraps, and waste bubble films. Adopting a large-diameter feeding compression and two-stage screw extrusion structure, this EPE pearl cotton pelletizer perfectly solves industry pain points of lightweight foam materials, including fluffy and difficult feeding, uneven melting, broken discharging strips, and low production capacity. With high automation, wear resistance, durability and precise temperature control, it serves as the core mass-production equipment for pearl cotton recycling and processing plants.

Ordinary foam plastic pelletizing equipment generally suffers from feeding slipping, incomplete material compression, fast screw wear, uneven heating, and hollow foamed finished particles, making stable mass production difficult. In contrast, the 377-150 model adopts a full set of optimized configurations including thickened wear-resistant accessories, forced feeding structure, zoned precise heating, and two-stage extrusion purification. It is specially adapted to the low-density, high-fluff and easy-aeration material characteristics of pearl cotton. It can directly process waste pearl cotton scraps, defective products and waste bubble films into high-quality recycled particles with regular appearance and qualified purity. Its mass production stability and finished product quality are far superior to ordinary general pelletizing equipment, which is very suitable for large-scale and normalized production of small and medium-sized recycling processing plants.

1. Complete Equipment Accessories Parameters, Functions and Core Values
2. Conveyor Belt (5m×800mm)

The whole machine adopts a thickened frame structure, equipped with a wear-resistant PVC conveyor belt and a dedicated 2.2KW RV motor. The effective belt width is 800mm and the total length is 5m. In the entire production line, the conveyor belt undertakes the front automatic feeding task. The thickened frame ensures stable operation without shaking and deformation. The widened PVC belt can receive fluffy pearl cotton materials in a large area, avoiding floating, spilling and jamming of lightweight materials. The 2.2KW motor delivers stable power output and conveys materials at a constant speed, matching the feeding rhythm of the rear forced feeder. It effectively solves the problems of unstable manual feeding, material accumulation and idling, time-consuming and labor-intensive operation, greatly improving the automation degree and feeding stability of the production line.

2. Forced Feeder for Pearl Cotton Pelletizer

The equipment is equipped with enlarged and thickened feeding tooth structure, matched with 173-type hard tooth surface reducer and 11KW high-power motor. Pearl cotton and bubble films are ultra-light foam materials, and ordinary feeders are prone to slipping, slow feeding and shutdown due to material breakage. This forced feeder grabs and compacts fluffy materials through thickened occlusal teeth, fundamentally solving the industry problem of difficult feeding of lightweight materials. The 173 hard tooth surface reducer features high torque and strong bearing capacity for continuous stable feeding. The 11KW motor provides sufficient feeding power to ensure uniform density and continuous stable feeding of materials entering the main machine, laying a unified material foundation for subsequent melting and plasticization.

3. 150-type Pelletizing Main Machine

The core main machine is model 377-150 with a feeding compression diameter of 377mm. The large-diameter compression design specially for fluffy foam materials can quickly squeeze out air inside materials and avoid hollow and foamed finished particles. All core components adopt high-frequency heat treatment strengthening technology: spiral blades are made of wear-resistant manganese steel with high-frequency treatment, featuring wear resistance, erosion resistance and long service life; the screw is made of 40CR material with high-frequency quenching, delivering high hardness, good toughness and deformation resistance; the barrel is made of No.45 steel with high-frequency treatment, with high temperature resistance, high pressure resistance and adaptability to long-term continuous melting operation. The machine body adopts a thickened square steel frame with solid structure and shock resistance, and is fully equipped with stainless steel protective covers for dust prevention, corrosion resistance and easy cleaning. The supporting 330-type reducer and 45KW motor are optional for customers, which can be freely matched with power assemblies according to capacity requirements, achieving higher adaptation flexibility.

4. 150-type Pelletizing Auxiliary Machine

The auxiliary machine is model 150 with a screw diameter of 150mm, screw length of 1500mm, barrel diameter of 180mm and barrel length of 1500mm. The screw adopts 40CR high-frequency treatment and the barrel adopts No.45 steel high-frequency treatment, with excellent wear resistance and high temperature resistance. Equipped with a 280-type low-noise hard tooth surface reducer and 22KW motor (customer-provided), it features low operating noise, stable transmission and low failure rate. The machine head adopts a 380mm mesh motor head matched with a dedicated 3KW-6 motor, which can filter fine impurities inside the melt with high precision and stabilize discharging pressure. It performs secondary refining and homogeneous plasticization on initially melted materials from the main machine, making the discharge purer and particles fuller. The whole machine is also equipped with a thickened square steel frame and stainless steel protective cover, featuring high protection level, neat appearance and convenient operation and maintenance.

5. 60KW Electromagnetic Heating System

The whole machine is equipped with a 60KW high-power electromagnetic heating device. Compared with traditional resistance wire heating, it achieves faster temperature rise, higher thermal conversion rate and obvious energy-saving effect. Adopting full-domain induction heating, the barrel is heated evenly without dead angles, avoiding material scorching and carbon deposition caused by local overheating, as well as incomplete plasticization and brittle particles caused by low temperature. It accurately adapts to the low-temperature melting characteristics of pearl cotton foam materials and ensures stable and unified temperature in batch production.

6. 4 Groups of Independent Heating Rings

The equipment is standardly equipped with 4 groups of zoned independent heating rings, covering the key melting sections of the main and auxiliary machines in sections to realize multi-section independent temperature control. Pearl cotton pelletizing is extremely sensitive to temperature range, and single integral heating is prone to large front and rear temperature differences and uneven plasticization. Four groups of independent temperature control can accurately adjust the temperature according to different working conditions of the feeding section, melting section, refining section and extrusion section, enabling gradual melting, exhaust and plasticization of materials, and maximizing the transparency and finished product appearance of particles.

1. Core Product Features
2. Exclusive Compression Structure for Light Materials: The 377mm ultra-large feeding compression caliber matched with forced feeding system specially solves the pain points of slipping, difficult feeding and incomplete compression of fluffy EPE pearl cotton and bubble films, ensuring continuous and stable feeding and eliminating failures such as empty feeding, material breakage and machine blockage.
3. Full-machine High-grade Wear-resistant Technology: Manganese steel blades, 40CR screws and No.45 steel barrels are all processed by high-frequency heat treatment. The whole machine adopts thickened frame and stainless steel protection, featuring wear resistance, high temperature resistance and corrosion resistance. It supports 24-hour continuous production with a service life far exceeding ordinary general pelletizing equipment.
4. Two-stage Extrusion Purification Technology: The two-stage structure of primary compaction and melting by the main machine and secondary refining and filtration by the auxiliary machine, matched with large-diameter mesh to filter impurities, ensures high melt homogeneity. The finished particles are full, hollow-free, bubble-free and impurity-free with high-grade appearance and high selling price.
5. Zoned Constant Temperature Energy-saving Production: 60KW electromagnetic heating combined with 4 groups of independent heating rings realizes zoned precise temperature control with high thermal efficiency and lower energy consumption. It eliminates common problems such as scorched materials, paste materials and poor plasticization, ensuring extremely high production stability.
6. Flexible Adaptation and Simple Maintenance: The reducer and main/auxiliary machine motors support optional matching for customers to adapt to different capacity requirements. The whole machine has complete protection and regular structure, making daily cleaning, maintenance and accessory replacement simple and convenient, suitable for long-term mass production.

III. Equipment Working Process

Lightweight materials such as waste EPE pearl cotton, bubble films and foam scraps are automatically and uniformly fed by a 5-meter extended and 800mm widened PVC conveyor belt, stably transporting fluffy materials to the feeding port. Then the materials enter the forced feeder, where the 11KW power and thickened feeding teeth compact and push the materials at a constant speed, completely solving the problem of light material slipping and idling. The materials enter the main machine of the 377-150 EPE pearl cotton pelletizer, where the 377mm large-diameter compression structure compacts and exhausts the materials, and the high-frequency heat-treated screw and barrel of the main machine complete the first melting and plasticization. The 60KW electromagnetic heating and four groups of independent heating rings perform segmented constant temperature control throughout the process to ensure full and uniform material melting. The initially melted melt enters the 150-type auxiliary machine for secondary refining and homogenization, and the 380mm mesh machine head effectively filters fine impurities and stabilizes discharging pressure. Finally, uniform material strips are extruded, and high-quality recycled particles with regular appearance and qualified purity are produced after cooling, air drying, pelletizing and screening. The whole process operates automatically and linkage without multi-person duty.

1. Application Fields

This EPE pearl cotton pelletizer is widely applicable to packaging material factories, pearl cotton production enterprises, plastic recycling processing plants and industrial solid waste recycling enterprises. It mainly processes various waste EPE pearl cotton, pearl cotton scraps, defective foam materials, PE bubble films, foam packaging wastes and other lightweight foam plastics. The recycled particles produced by the equipment can be reused for foamed packaging products, injection molding accessories, filling materials and general plastic product processing, realizing 100% resource recycling of waste foam plastics, helping enterprises consume waste materials, reduce material costs and increase recycled income.

1. FAQ

Q1: Do large pieces of whole pearl cotton need to be torn and crushed in advance?

A: No need. The 377-150 EPE pearl cotton pelletizer is equipped with a large-diameter compression feeding structure and forced feeding system, which can directly feed whole, large and stacked fluffy pearl cotton materials without pre-cutting, tearing or pretreatment. It saves the investment of front-end crushing equipment, simplifies the production line process, and reduces labor costs and equipment occupation space.

Q2: Why are pearl cotton particles made by ordinary pelletizers prone to bubbling and hollowing?

A: Pearl cotton is extremely light and fluffy with large internal gaps. Ordinary equipment has no large-diameter compression and compaction structure, so materials wrap a lot of air during feeding. In addition, single temperature control and short plasticization time lead to unremoved air, resulting in hollowing, bubbling and holes after cooling. In contrast, this equipment adopts the process of front forced compaction and exhaust + two-stage extrusion + multi-section temperature control, which can fully discharge internal air of materials and realize thorough plasticization, producing full and dense finished particles.

Q3: Is the equipment prone to wear and failure during long-term continuous production?

A: No. The core spiral blades, screws and barrels are all made of high-frequency heat-treated reinforced materials, with hardness and wear resistance far exceeding ordinary accessories. Matched with thickened frame and stainless steel protective structure for dust and slag prevention, the equipment operates stably. With normal maintenance, it can realize 24-hour uninterrupted mass production for a long time with extremely low failure rate and low operation and maintenance costs.

Call to Action

To obtain the accurate quotation, temperature debugging parameters, capacity matching scheme and site layout plan of the 377-150 EPE pearl cotton pelletizer, feel free to contact us for free one-on-one professional technical consultation at any time! WhatsApp/WeChat: +86 15092868822 ｜ Email: [email protected]
