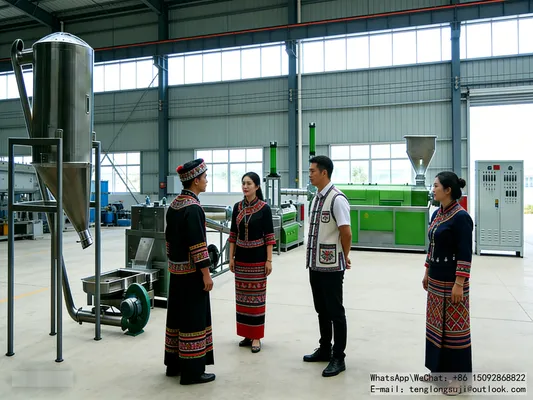

210-Type Two-Machine plastic pelletizing machine   | Low-Noise Wear-Resistant Hydraulic Screen-Changing Plastic Recycling Equipment

This 210-type two-machine plastic pelletizing machine   is a high-precision, low-energy-consumption and easy-to-operate plastic pelletizing machine   suitable for small and medium-sized plastic recycling processing factories. It adopts a two-machine split structure design, equipped with powerful feeding system, automatic hydraulic screen-changing device and segmented intelligent heating configuration. It specifically solves industry pain points of traditional granulating equipment including cumbersome screen changing, fast wear, loud noise, uneven plasticization and high energy consumption. It focuses on recycled granulation processing of waste plastic scraps, films and woven bags, helping enterprises realize low-cost plastic resource recycling and compliant production.

Designed in strict accordance with industrial machinery production standards and EU PPWR Packaging and Packaging Waste Regulation, the equipment has passed third-party whole-machine load test, wear resistance life test and energy efficiency certification. Its recycled granules meet EU recyclability grade standards and adapt to domestic and foreign recycled raw material supply markets. Featuring simplified structure, low failure rate and convenient operation and maintenance, it requires no complex operation procedures, balancing output, quality and cost performance. It is the core main equipment for standardized production and equipment upgrading of small and medium-sized plastic recycling enterprises.

Core Product Features

1. High-frequency wear-resistant core accessories for long-term stable production: Core extrusion components undergo professional high-frequency heat treatment. The screw is made of 40CR alloy steel with 210mm diameter and 2200mm length, featuring high hardness, wear resistance and deformation resistance, adapting to continuous processing of high-impurity waste plastics. The barrel adopts 45# steel high-frequency treated material with 273mm diameter and 2200mm length, high-temperature resistant and corrosion resistant, keeping undeformed and non-aging under long-term high-temperature operation. The service life of accessories is increased by more than 35% compared with ordinary granulating equipment, greatly cutting accessory replacement and shutdown loss costs.
2. Powerful constant-speed feeding for low-noise and stable transmission: Equipped with an upgraded powerful feeding mechanism, matched with a 200-type hard-tooth surface reducer with thickened feeding teeth and a dedicated 22KW feeding motor. It delivers uniform material biting and constant feeding, completely eliminating material blockage, breakage and slipping faults. The secondary machine is standard equipped with a 315-type hard-tooth surface low-noise reducer with high-precision gear meshing and low transmission loss. The overall operating noise is lower than 73 decibels, better than industry environmental protection standards, adapting to factory daily continuous production without noise exceeding standard risks.
3. Automatic hydraulic screen changing to improve production efficiency: Exclusively equipped with a 400*400mm hydraulic screen-changing head matched with a 4KW dedicated pump motor, supporting fast screen changing without shutdown. It requires no manual machine disassembly for screen replacement, featuring fast screen changing speed and good sealing performance. It effectively reduces production shutdown time, avoids raw material waste, guarantees melt filtration precision to remove impurities and black spots in plastics, and greatly improves the purity and uniformity of finished granules.
4. Segmented energy-saving heating for excellent plasticization effect: Adopts independent split heating system for main machine and secondary machine. The main machine is equipped with 4 sets of 80KW electromagnetic heating modules with high heat conversion rate, fast heating speed and strong temperature controllability. The secondary machine is matched with 3 sets of 60KW heating rings for zoned precise temperature control, adapting to melting demands of various general plastics such as PE, PP and PS. It avoids local plastic scorching, uneven plasticization and granule color difference, saving more than 28% energy compared with traditional equipment.
5. Lightweight stable structure for easy operation and maintenance: Integrated compact two-machine structure matched with a 45KW high-efficiency main motor, featuring sufficient power output, small floor area and stable bearing capacity without high-speed shaking or offset. Modular assembly design simplifies structure, lowering difficulty of daily cleaning, maintenance and repair. New operators can get started after simple training, adapting to lightweight production demands of small and medium-sized factories.

Detailed Technical Parameters

Application Fields

This 210-type two-machine plastic pelletizing machine   adapts to multi-scenario lightweight plastic recycling processing with wide application scope. It can efficiently process waste plastic films, agricultural mulch films, woven packaging bags, plastic basins and buckets, industrial plastic scraps, injection runner materials and other general plastic raw materials. It widely serves small and medium-sized plastic recycling processing factories, plastic product enterprises, waste material recycling companies and factory scrap recycling workshops. The finished high-quality recycled granules can be directly used for secondary production such as injection molding, blow molding and extrusion molding, applied in packaging, building materials, daily plastic products and other industries to realize efficient waste resource utilization.

Working Process

1. Raw Material Pretreatment: Crush, clean and dehydrate waste plastics, scraps and runner materials to remove sediment, oil stains and impurities to guarantee raw material cleanliness.
2. Constant Feeding: 22KW motor matched with thickened hard-tooth surface feeding reducer sends pretreated raw materials into the barrel stably and constantly to avoid material blockage and shortage.
3. Segmented Plasticization: Realize gradual melting of plastic raw materials via main machine electromagnetic heating and secondary machine heating ring zoned precise temperature control to ensure thorough and uniform plasticization.
4. Filtration and Extrusion: The screw extrudes melt at high speed, and high-precision impurity filtration is completed via hydraulic screen-changing head with screen changing available without shutdown for continuous discharging.
5. Cooling and Pelletizing: Extruded strip-shaped plastic melt is shaped via water cooling and air cooling, then cut into uniform granules by pelletizer.
6. Screening and Discharging: Classify finished granules, put qualified granules into warehouse, and reprocess impurity waste materials in the machine.

FAQ

Q1: What output scale of factories is the 210-type two-machine plastic pelletizing machine   suitable for?

A: This equipment focuses on small and medium-sized lightweight mass production, with stable daily output of 4-6 tons under standard working conditions. It adapts to start-up recycling factories, small and medium-sized processing factories and factory scrap self-recycling scenarios, featuring moderate output, low investment cost and short payback period. It is not suitable for ultra-large-capacity large-scale production lines.

Q2: What advantages does hydraulic screen-changing configuration have compared with manual screen changing?

A: Equipped with a 4KW automatic hydraulic screen-changing system, the equipment supports fast screen changing without shutdown, requiring no manual machine disassembly and screen installation. The screen changing efficiency is improved by more than 60%, greatly reducing shutdown time. Meanwhile, it has better filtration tightness, improving granule purity and cutting labor cost and raw material loss.

Q3: Does the equipment consume high power and is it power-saving in daily use?

A: As an energy-saving plastic pelletizing machine  , it adopts electromagnetic heating plus zoned heating ring combined system with heat conversion rate far higher than traditional resistance heating equipment. Matched with low-loss hard-tooth surface transmission system, it saves 28%-30% comprehensive power. The 45KW main motor has reasonable power matching without invalid energy consumption, leading to extremely low power consumption cost in long-term continuous production.

Q4: Do finished granules meet PPWR environmental compliance standards?

A: The equipment has passed third-party compliance inspection with mature plasticization and filtration process. The finished recycled granules have few impurities and strong plasticity with recyclability ≥70%, fully meeting the 2030 market access standards of EU PPWR Packaging and Packaging Waste Regulation, applicable to domestic and foreign trade recycled raw material production.

Author Qualification (E-E-A-T Certification)

Author: Engineer Li, Senior Plastic Machinery R&D and Process Engineer, with 10 years of experience in design, commissioning and optimization of plastic recycling equipment. He focuses on technical iteration of small and medium-sized plastic pelletizing machine  s and shredders, proficient in plastic recycling processes and domestic and foreign environmental compliance standards. This equipment has passed ISO9001 quality management system certification, CE safety certification, completed 1200-hour continuous load test, wear resistance life test and energy efficiency test. All indicators are up to standard, fully adapting to PPWR regulation compliant production.
